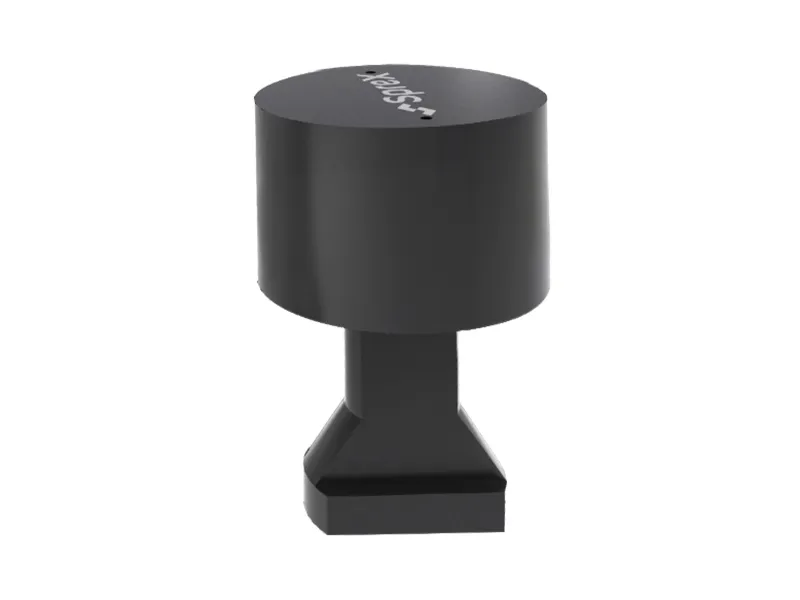

FY Series Hydraulic Clamping System
Contact

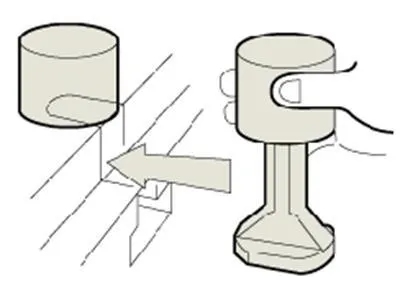

The FY series hydraulic clamping system is mainly used for clamping dies with T-slot clamps, thus reducing the time required
to change dies. Compared with other hydraulic clamping systems, high efficiency and space saving are the most attractive features of this
system as it saves a considerable amount of installation space.
The FY series hydraulic clamping system is usually used for stamping dies and is combined with suitable equipment such as stamping machines, oil
hydraulic machines, etc.
Machine series specifications
- Clamping force (25MP): 20 kn
- X-stroke: 7 mm
- Y-stroke: 3 mm
- Z-stroke safety: 4 mm
- Clamping force (25MP): 40 kn
- X-stroke: 7 mm
- Y-stroke: 3 mm
- Z-safety stroke: 4 mm
- Clamping force (25MP): 60 kn
- X-stroke: 8 mm
- Y-stroke: 4 mm
- Z-safety stroke: 4 mm
- Clamping force (25MP): 100 kn
- X-stroke: 8 mm
- Y-stroke: 3 mm
- Z-safety stroke: 5 mm
- Clamping force (25MP): 160 kn
- X-stroke: 8 mm
- Y-stroke: 3 mm
- Safe Z stroke: 5 mm
- Clamping force (25MP): 250 kn
- X stroke: 8 mm
- Y stroke: 3 mm
- Safe Z stroke: 5 mm
| Line | Clamping Force(25MP) | Total Cycle | Clamping Cycle | Safe Cycle | Hydraulic Clamp Cylinder Mass | Weight |
| KN | mm | mm | mm | cm3 | kg | |
| FY2 | 20 | 8 | 4 | 4 | 6.5 | 2 |
| FY4 | 40 | 8 | 3 | 5 | 15 | 4 |
| FY6 | 60 | 8 | 3 | 5 | 22 | 6 |
| FY10 | 100 | 8 | 5 | 5 | 33 | 8 |
| FY16 | 160 | 8 | 5 | 5 | 55 | 10 |
| FY25 | 250 | 8 | 5 | 5 | 85 | 18 |
Product selection
Customers can choose the product line and the corresponding number of clips depending on their usage needs.

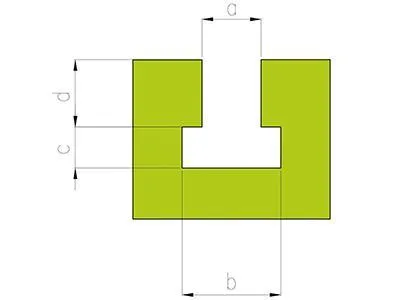

| Hydraulic clamping system type | a(H7) | b | c | d | ||
| FW2 | FW2-S | FY2 | 18 | 30+20 | 14+10 | 19±0.2 |
| FW4 | FW4-S | FY4 | 22 | 36+20 | 16+10 | 25±0.2 |
| FW6 | FW6-S | FY6 | 22 | 36+20 | 16+10 | 25±0.2 |
| FW10 | FW10-S | FY10 | 22 | 36+20 | 16+10 | 25±0.2 |
| FW16 | FW16-S | FY16 | 28 | 46+20 | 20+20 | 32±0.2 |
| FW25 | FW25-S | FY25 | 36 | 60+20 | 30+20 | 41±0.2 |
| FW50 | FW50-S | / | 42 | 68+20 | 30+20 | 47±0.2 |

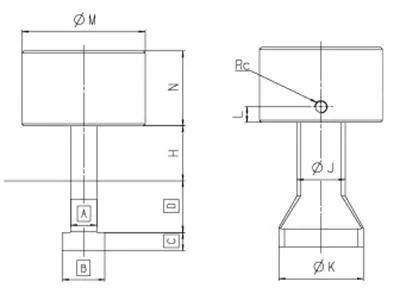

| Specifications | M | N | Rc | L | J | K | H(Standard) |
| FW2 | 50 | 55 | 1/8 | 12 | 18 | 38 | 25 |
| FW4 | 76 | 65 | 1/4 | 15 | 25 | 55 | 30 |
| FW6 | 80 | 70 | 1/4 | 15 | 30 | 64 | 30 |
| FW10 | 100 | 75 | 1/4 | 15 | 40 | 78 | 40 |
| FW16 | 130 | 80 | 1/4 | 15 | 50 | 88 | 50 |
| FW25 | 150 | 105 | 1/4 | 15 | 60 | 98 | 50 |
Note: H is the thickness of the mold base plate matched with the standard hydraulic clamp and can be customized upon request.
- The electrical system is equipped with an OMROM programmable controller, ensuring safety and ease of use.
