Mainte pro MK-750ST Gas Leak Detector

Detecting and preventing gas leaks is a contribution to energy savings.

1 e1736304364883

1. Leak locations are displayed directly on the screen so they can be easily detected and prevented.

Small and lightweight, can be used with one hand
TFT LCD screen is easy to observe when working outdoors
Locate a wide range of leaks in a short time
Detect gas leaks remotely, suitable for remote observation of overhead pipelines
Can be used with a waist bag for easy carrying and moving

Air, steam, nitrogen, argon and other gases (*MK-750ST may not be detected depending on the detection environment and leak rate).

Detect gas leaks from pinholes due to corrosion on pipes.	Detect gas leaks from adjustment joints.
Detect gas leaks from welder gas pipes.	Detect leaks due to damaged seals and loose flanges.
Detect leaks from defective parts welding.	Detect suction into the vacuum tube.

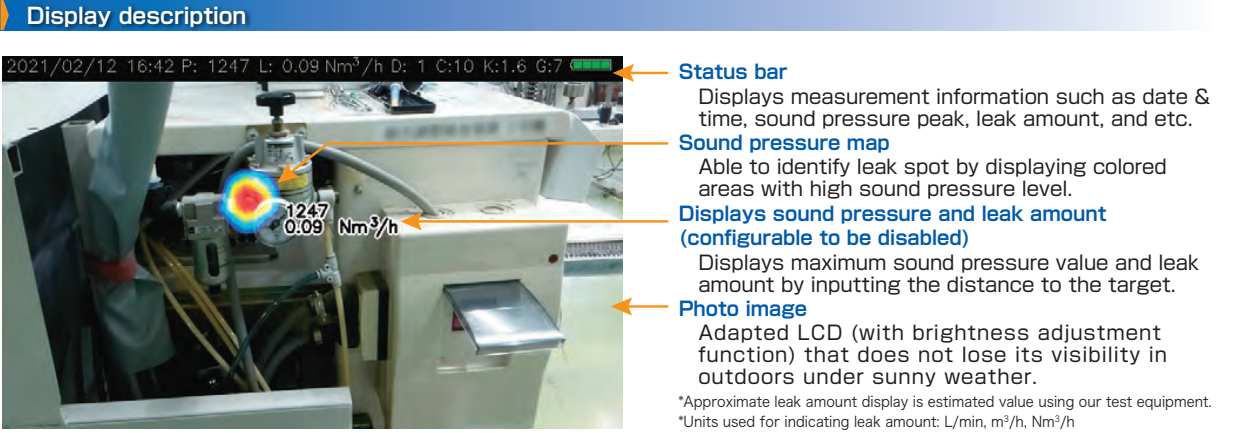

3. Display description

anh mota

4. Specifications

Model	MK-750ST-E
Ultrasonic sensor	Center frequency 40kHz
Performance detection	Able to detect leaks within 7 meters of 70kPa pressure from 0.2mmφ holes. * Data from our lab
Detection display range	Approximately 60 degrees horizontally and 35 degrees vertically
Display	4.3-inch / 800 x 480-pixel LCD display
Display refresh rate	5 times/second peak hold
Other functions	Display approximate leakage amount and sleep mode
Recording content	Superimposed image of sound pressure map (JPEG), camera image (JPEG), sound pressure map data (CSV), data list file (CSV)
Data recording	Number of records: 3,500 or more (Recording media: Internal memory (1GB))
Data output	USB interface (compatible OS: Window 8.1, window 10)
Power source	Lithium-ion battery (continuous operating time: About 8 hours / full charge time: about 3 hours)
External dimensions	W182mm x H114mm x D64mm (Wrist strap and protector not included)
Weight	Approx. 740g (including battery, wrist strap and protector not included)
Standard configuration	Main unit, battery pack (RRC2057), battery charger (RRC-SMB-MBC), wrist strap (MK-9907), protective sheet (MK-9909), USB cable (U2C-MF10BK) and instruction manual
Optional	Battery pack [as spare] (RRC2057), neck strap (MK-9908), carrying case (MK-9705), waist bag (MK-9706), oscillator (MP-161-S001)
